Sunsynk 5kW 10.24kWh 51.2V Self Complete Solar Power System

SunSynk 5kW 10.24kWh 51.2V Self Consumption Solar Power System. Maximize your solar investment with SunSynk's efficient 5kW system. Achieve self-sufficiency and reduce your energy costs with 10.24kWh of battery storage and 51.2V of power output.

Key Features – Sunsynk 5kW 10.24kWh 51.2V Self Complete Solar Power System

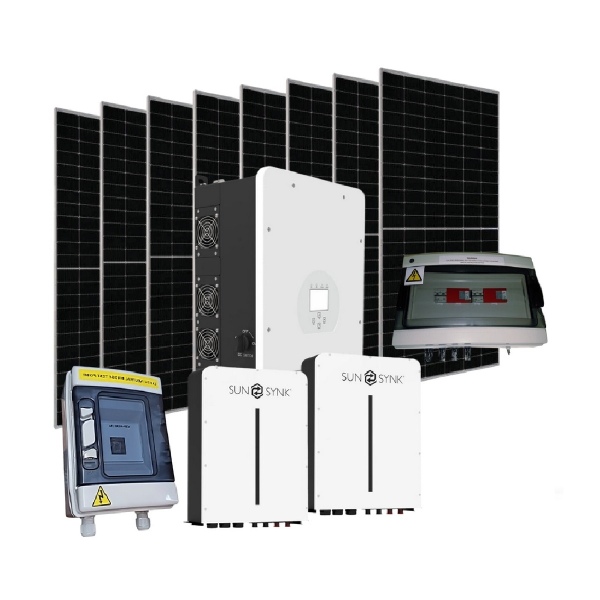

Kit Components

• 1 x SunSynk 5KW 48V Hybrid Inverter
• 2 x Sunsynk Wall Mount 5.12kWh 51.2V Lithium Battery
• 8 x Canadian Solar 555W Super High Power Mono PERC HiKU6 with MC4-EVO2
• 1 x Earth Neutral Bridge 25A AC
• 1 x Protection Box PV on Roof and Hazard Labels Pack
• 2 x 25mm2 single-core HV DC cable 1m - Pair
• 1 x 4mm² single-core DC cable 25m - Black
• 1 x 600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type I_II SPD
• 3 x K&N 40A Single Phase AC Switch Disconnector
• 2 x MC4 Pre terminated cable 2m
• 1 x MC4-EVO2 Connector Twin Pack

Solar Panel Specifications

• Weight: 27.6 kg
• Rated Power: 550 W
• MCS Reference: BABT8767-50-550W
• Length: 2,278 mm
• Width: 1,134 mm
• Depth: 30 mm
• VMPP: 41.7 V
• IMPP: 13.2 A
• Isc: 14 A
• Voc: 49.6 V
• Temp. Coefficient (Mpp): -0.34 %
• Clamp position on panel: Long side only
• Connector Type: MC4
• Efficiency: 21.3 %
• Pallet Size: Oversized

Hybrid Inverter - SunSynk 5KW 48V

• Operating Temperature Range: -40~60 ºC, >45 ºC Derating
• Cooling: Smart cooling
• Noise: <30 dB
• Communication with BMS:RS485; CAN
• Weight: 20.5kg
• Cabinet size: 330W×580H×232D mm (Excluding connectors and brackets)
• Protection Degree: IP65
• Installation Style: Wall-mounted
• Warranty: 5 Years
• SA: NRS 097 certified and COCT Certified

Battery Features - SunSynk Wall Mount 5.12kWh 51.2V Lithium Battery

• Battery Chemistry: Lithium Ferro Phosphate (LifePO4 or LFP)
• Capacity: 100 Ah
• Scalability: Max. 32 pcs in parallel (163.8kWh)
• Nominal Voltage: 51.2 V
• Operating Voltage: 43.2~57.6 V
• Energy:5.12 kWh
• Usable Energy:4.61 kWh
• Charge/Discharge Current:
• Recommend: 50A
• Max: 100A
• Peak(2mins, 25) 150A
• Other Parametre
• Recommend Depth of Discharge: 90%
• Dimension (W/H/D):440*620*135mm (don’t include Circuit Breaker, terminals and hanging boards)
• Weight Approximate: 50kg
• Master LED Indicator:5 LED (SOC 20%~100%), 3 LED (working, alarming, protecting), IP65
• Working Temperature: Charge: 0ºC ~ +55ºC (optional heating: -20ºC~+55ºC), Discharge: -20ºC ~ +55ºC
• Storage Temperature:-20ºC ~ +35ºC
• Humidity: 5% ~ 95%
• Altitude: ≤2000m
• Installation: Wall Mounted or 19-inch standard cabinet
• Communication Port: CAN2.0, RS485
• Certification: IEC62619, CE, UN38.3

• Warranty: 25 years

Warranties:

All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
